    High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : DBM305(P)
    Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 3GW/YEAR
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan

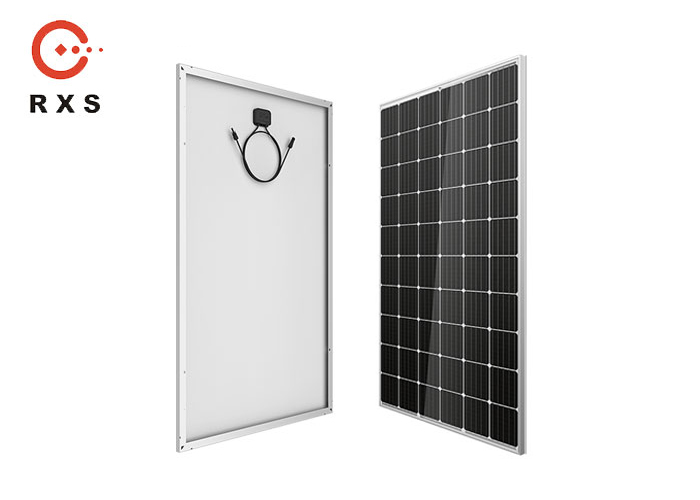

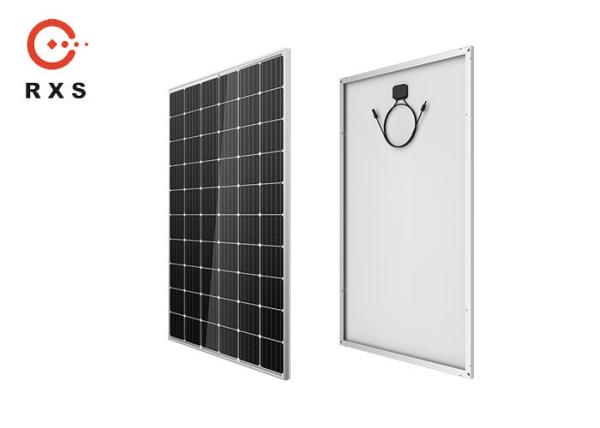

    Perc monocrystalline framed solar panel / 305W / 60cells / 20V

    Main Features
    1. Positive power tolerance (0~+5W) guaranteed.
    2. High module conversion efficiency.
    3. Low LID.
    4. Better energy yield with excellent low irradiance performance and temperature coefficient.
    5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
    6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.

    Applications


    On-grid residential roof-tops
    On-grid commercial/industrial roof-tops
    Solar power plants
    Off-grid system
    Other on-grid applications


    Electrical performance parameters

    Electrical performance parameters
    STC (AM1.5, 1000W/m², cell temperature 25℃)
    ModelDBM305(P)
    Maximum power (Pm/Wp)305
    Maximum power voltage (Vmp/V)33.0
    Maximum power current (Imp/A)9.24
    Open circuit voltage (Voc/V)40.2
    Short circuit current (Isc/A)9.94
    Module efficiency (%)18.5
    Normal operating cell temperature (NOCT)45±2℃
    Temperature coefficient of Voc-0.30%/℃
    Temperature coefficient of Isc0.059%/℃
    Temperature coefficient of Pm-0.39%/℃
    Power tolerance (W)0~+5

    General performance parameters

    Mechanical performance parameters
    Module dimension (L*W*H) (mm)1650*992*35mm
    Cell dimension(mm)156.75*156.75 PERC mono
    Module weight (kg)19
    Cablecable section-4mm2 length-900mm
    Cell Nos & array60(6*10)
    Packing30pcs/pallet, 26pallets/40HQ,780pcs/40HQ
    Quality parameters
    Module working temperature range (℃)-40~+85
    Maximum system voltage (V Dc)1000
    System maximum protection current (A)15
    Maximum wind loads/maximum snow loads (Pa)2400/5400
    Hot-spot resistance100% hot-spot free


    Drawing(mm)


    Quality Warranty
    10-year materials&workmanship warranty
    25-year linear power warranty
