    Renewable BIPV Solar Panel Battery Energy Power System 300W For Home Carport

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : RXJJ-105A
    Certification : TUV CE
    Price : BIPV Solar Panels
    Payment Terms : L/C, T/T
    Supply Ability : 3GW/year
    Delivery Time : 7-20 working days
    • Product Details
    • Company Profile

    Renewable BIPV Solar Panel Battery Energy Power System 300W For Home Carport

    Renewable 100W 200W 300W BIPV Solar Panel Battery Energy Storage Power System For Home Carport

    Renewable BIPV Solar Panel Battery Energy Power System 300W For Home CarportRenewable BIPV Solar Panel Battery Energy Power System 300W For Home CarportRenewable BIPV Solar Panel Battery Energy Power System 300W For Home Carport

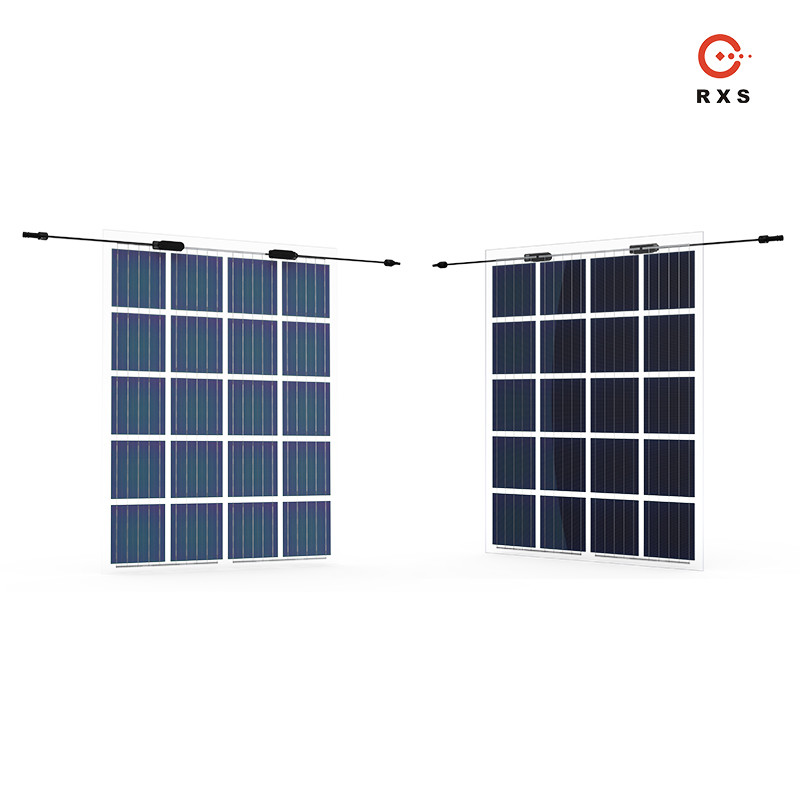

    BIPV RXJJ--105A Bifacial PV Components

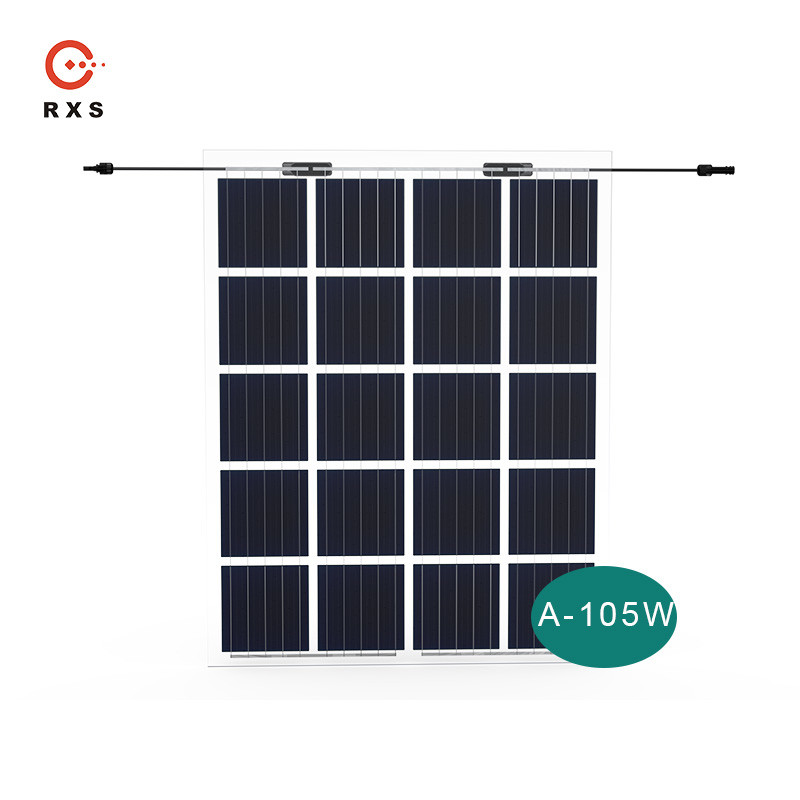

    Monocrystalline Laminated Glass Module RXJJ--105A

    Performance Parameters

    ModelRXJJ--105A
    Maximum power at STC (Pm/Wp)105
    Maximum power voltage (Vmp/V)11.0
    Maximum power current (lmp/V)9.55
    Open circuit voltage (Voc/V)13.0
    Short circuit current (Isc/A)10.51
    Transparent (%)25.5
    Working temperature (℃)-40~ +85
    Fault structure (mm)3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm tempered glass
    Cable4m㎡/300mm
    Dimension (mm)930mm*730mm
    Weight (kg)12.5kg
    Wind loads resistance2.4KN/㎡
    Cells No.20 (5*4)

    *STC (AM1.5,1000w/㎡,cell temperature 25℃)

    1. year material & workmanship warranty

    30-year linear power warranty

    Application :Commercial, Home, Solar Home System, Solar System Solar Street Light, solar panel system

    Junction box :IP65 Rated, IP67 TUV/UL certificated, MC4 Connector, IP 67, IP65 Waterproof

    solar cell :Mono 156*156 Cell, 5BB Mono156*156, Mono 156.75*156.75mm, Monocrystalline/Polycrystalline, Mono Crystalline

    Material :Monocrystalline Silicon
