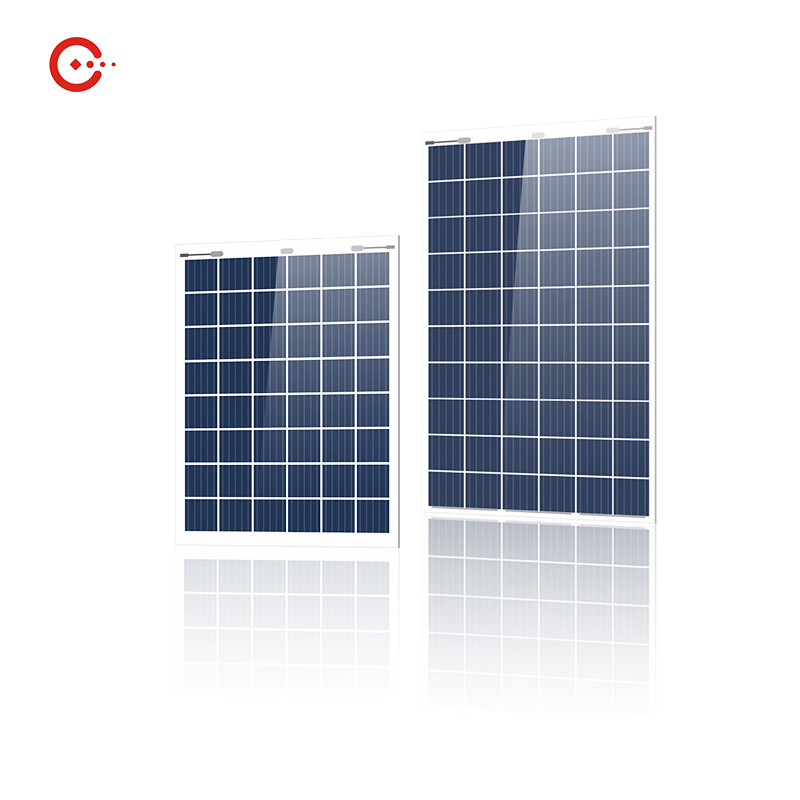

24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable

Wuhan Rixin Technology Co., Ltd.
Contact Now
    Buy cheap 24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable from wholesalers

    Buy cheap 24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable from wholesalers
    • Buy cheap 24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable from wholesalers
    • Buy cheap 24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable from wholesalers
    • Buy cheap 24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable from wholesalers

    24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : RXJJ-MDM210
    Certification : TUV CE
    Price : BIPV Solar Panels
    Payment Terms : L/C, T/T
    Supply Ability : 3GW/year
    Delivery Time : 7-20 working days
    • Product Details
    • Company Profile

    24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable

    High transmittance 24.52% Customizable BIPV Solar Panels Polycrystalline Silicon PV Panel


    Self-branded

    Formed in 2001,has a total of 500 employees. It has two manufacturing bases, with area 180000㎡ and fully automatic production lines.

    Industry Experience

    Rixin Technology is a clean energy company as well as one of the China’s leading crystalline silicon solar power companies.

    Competitive products

    High efficiency Perc mono half-cut bifacial module, BIPV laminated double glass module, Perc mono/poly framed solar panel, solar power system etc, at present, Rixin Technology’s total installed capacity of solar projects exceeds 1GW.

    Professional Team

    Professional saling service and after-sale service.

    R&D staff is over 10% employees.

    Perfect logistics and warehousing services.


    Product namePolycrystalline Silicon Laminated Glass Module
    TypeRXJJ-MDN210
    Electrical parametersMaximum power (Pm/Wp)*210
    Power tolerance (%)±5
    Maximum power voltage (Vmp/V)*24.78
    Maximum power voltage ( Imp/A)*8.48
    Open circuit voltage (Voc/V)*30
    Short circuit current (Isc/A)*9.35
    Module efficiency ηc(%)*13.6
    Maximum system voltage(V)1500
    Working temperature(℃)-40~85
    Temperature coefficient of Pm-0.41%/℃
    Temperature coefficient of Voc-0.31%/℃
    Temperature coefficient of Isc+0.05%/℃
    Mechanical parametersFault structure(mm)5 Low iron tempered glass+0.76PVB+polycrystalline silicon cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced)
    Cable4mm2/900mm
    Module dimension (L*W*H)(mm)1460mm*1060mm*11mm
    Module Weight (kg)40kg
    Wind resistance2.4kN/m2

    24.52% Transmittance BIPV Solar Panels Polycrystalline Silicon PV Panel Customizable
