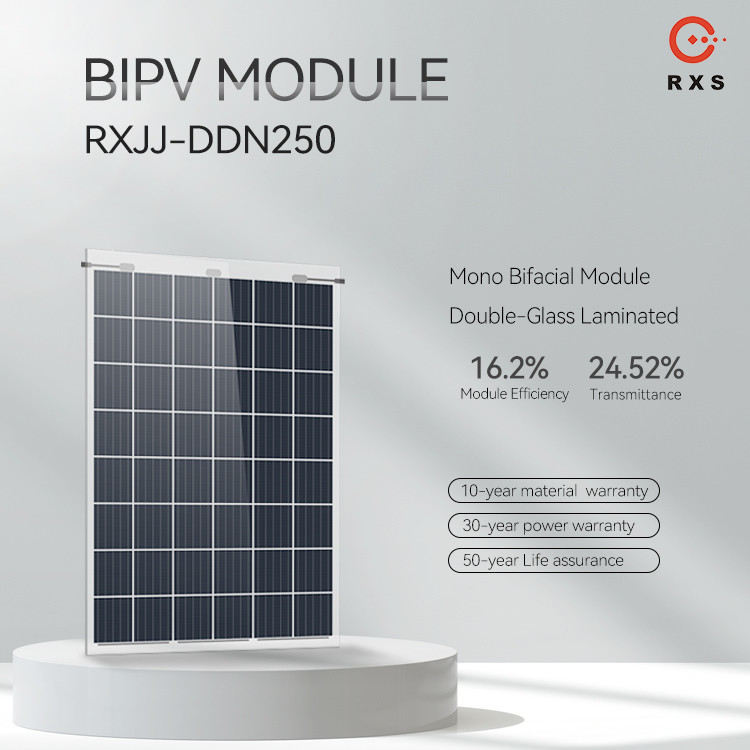

    Rixin Transparent High Efficiency BIPV Solar Panels Mono 200w 250w Solar Module

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : DDN250
    Certification : TUV CE
    Price : BIPV Solar Panels
    Payment Terms : L/C, T/T
    Supply Ability : 3GW/year
    Delivery Time : 7-20 working days
    • Product Details
    • Company Profile

    Rixin Transparent High Efficiency BIPV Solar Panels Mono 200w 250w Solar Module

    Rixin Transparent High Efficiency BIPV Solar Panels Mono 200w 250w Solar Module


    Rixin Transparent High Efficiency BIPV Solar Panels Mono 200w 250w Solar Module

    Product nameMonocrystalline double-sided laminated glass Module
    TypeRXJJ-DDN250
    Electrical parametersMaximum power (Pm/Wp)*250
    Power tolerance (%)±5
    Maximum power voltage (Vmp/V)*25.9
    Maximum power voltage ( Imp/A)*9.65
    Open circuit voltage (Voc/V)*32.4
    Short circuit current (Isc/A)*10.15
    Module efficiency ηc(%)*16.2
    Maximum system voltage(V)1500
    Working temperature(℃)-40~85
    Temperature coefficient of Pm-0.38%/℃
    Temperature coefficient of Voc-0.30%/℃
    Temperature coefficient of Isc+0.048%/℃
    Mechanical parametersFault structure(mm)5 tempered glass+0.76PVB+single crystal double-sided cell+0.76PVB+5 tempered glass (3.2+3.2 glass can also be used, the thickness is reduced and the weight is reduced)
    Cable4mm2/900mm
    Module dimension (L*W*H)(mm)1460mm*1060mm*11mm
    Module Weight (kg)40kg
    Wind resistance2.4kN/m2
    Rixin Transparent High Efficiency BIPV Solar Panels Mono 200w 250w Solar ModuleRixin Transparent High Efficiency BIPV Solar Panels Mono 200w 250w Solar Module
