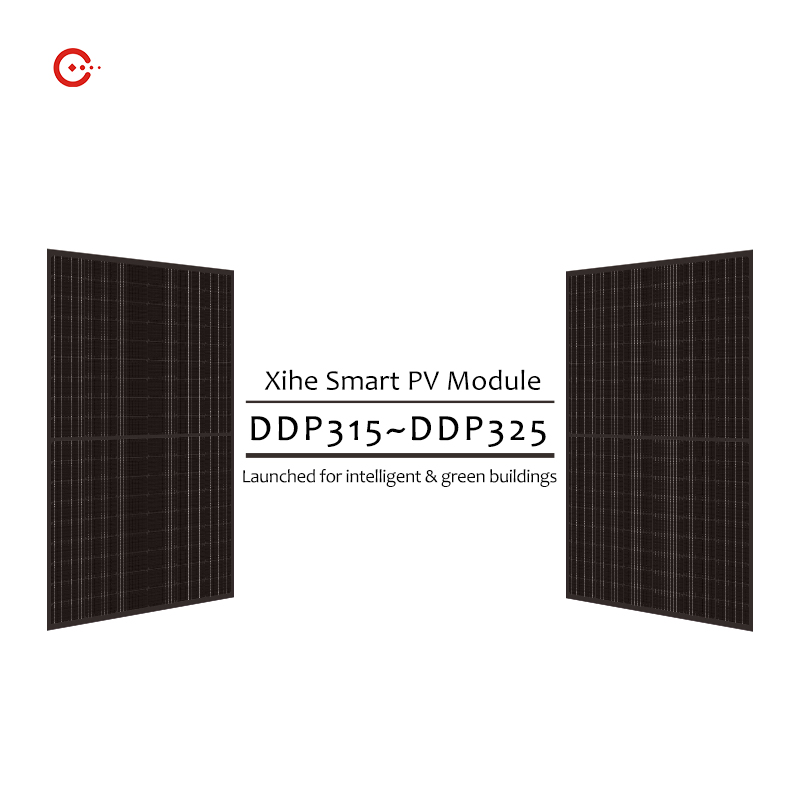

All Black Standard Solar Panel with Ip68 junction , 325W Solar
Photovoltaic Cell Monocrystalline
The solar panel is made to our specifications , the systems are
ideal for homeuse with fridge ,light, and other home applicance.
clean energy is needed. They are very popular among the
international market and will the future tender of new energy.
Outstanding module performance
Anti PID
High hot-spot resistance
Double semi-tempered glasses strengthen cracking resistance
Improve heat dissipation
Ensure fire safety performance
Replace polymer back plate with tempered glass, to improve fire
safety perormance
Passed fire safety test grade A
System cost reduction makes more efficiency
Maximum system voltage enhanced to 1500V
Compared with 1000V system, system overall cost reduced greatly
30-year linear power warranty, only 0.5% annual linear degradation
Harsh environment adaptation
High transmittance,anti reflection, self-cleaning coated glass
No aluminum alloy frame, no grounding
Excellent performance on wind & sand resistance, salt mist
resistance, ammonia corrosion resistance
Passsed positive snow loads(5400pa) and wind loads(2400pa)
certification tests.
| Model | DDP315(K) | DDP320(K) | DDP325(K) |
| Maximum power(Pm/Wp) | 315 | 320 | 325 |
| Maximum power voltage(Vmp/V) | 29.3 | 29.4 | 29.5 |
| Maximum power current(lmp/V) | 10.75 | 10.88 | 11.00 |
| Open circuit voltage(Voc/V) | 35.9 | 36 | 36.1 |
| Short circuit current(Isc/A) | 11.54 | 11.60 | 11.66 |
| Module efficient(%) | 19.0 | 19.3 | 19.6 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient
temperature=25℃,AM=1.5
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 108 (6*9*2) |
| Appearance color | Black |
| Cable | 4m㎡ negetive1000mm,positive1000mm |
| Module weight (kg) | 19 |
| Module dimension (L*W*H)(mm) | 1600*1036*5mm |
| Packing | 33pcs/pallet |
| Power optimizer matching form | 2 modules equipped with 1 optimizer |
Quality parameters
| Module working temperature range (℃) | -40~ +85 |
| Power tolerance(W) | 0~+5 |
| Maximum system voltage(V) | DC1500 |
| System maximum protection current(A) | 20 |
| NOCT(℃) | 45±2 |
| Front/rear static loads(Pa) | 2400 /2400 |
| Junction box/Connector | Ip68,split / MC4 compatible |
Temperaturecoefficient(STC)
| Temperature coefficient of Voc | -0.3%/℃ |
| Temperature coefficient of Isc | +0.06%/℃ |
| Temperature coefficient of Pm | -0.39%/℃ |
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient
temperature=25℃,AM=1.5 |
Quality warranty
12-year material & workmanship warranty
30-year linear power warranty
RFQ
Q1 : What about delivery time?
A : Goods : 10-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized
packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before
packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
- year linear power warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and
MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 20 years produce
experience.We have cooperation projects with governments and
well-known companies and have won a good reputation.
Self-branded
Formed in 2001,has a total of 500 employees. It has two
manufacturing bases, with area 180000㎡ and fully automatic
production lines.
Industry Experience
Rixin Technology is a clean energy company as well as one of the
China’s leading crystalline silicon solar power companies.
Competitive products
High efficiency Perc mono half-cut bifacial module, BIPV laminated
double glass module, Perc mono/poly framed solar panel, solar power
system etc, at present, Rixin Technology’s total installed capacity
of solar projects exceeds 1GW.
Professional Team
Professional saling service and after-sale service.
R&D staff is over 10% employees.
Perfect logistics and warehousing services.
