Monocrystalline Cells Standard Solar Panel PREC Glass Glass 500W
540WP PV Module
Mono Bifacial Double Glass Module DDG(P)540(k)
| Model | DDG(P)540(k) |
| Maximum power(Pm/Wp) | 540 |
| Maximum power voltage(Vmp/V) | 42.09 |
| Maximum power current(lmp/V) | 12.83 |
| Open circuit voltage(Voc/V) | 49.91 |
| Short circuit current(Isc/A) | 13.58 |
| Module efficient(%) | 20.83 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient
temperature=25℃,AM=1.5
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 144 pcs |
| Cell size (mm) | 182*91 |
| Glass thickness (mm) | 2.0 |
| Frame | Anodized alaminum alloy |
| Cable | 4m㎡ negetive300mm, positive300mm |
| Module weight (kg) | 32.1 |
| Module dimension (L*W*H)(mm) | 2285*1134*35mm |
| Packing | 31pcs/pallet |
Quality parameters
| Module working temperature range (℃) | -40~ +85 |
| Power tolerance(W) | 0~+5 |
| Maximum system voltage(V) | DC1500 |
| System maximum protection current(A) | 25 |
| NOCT(℃) | 45±2 |
| Front/rear static loads(Pa) | 2400 / 5400 |

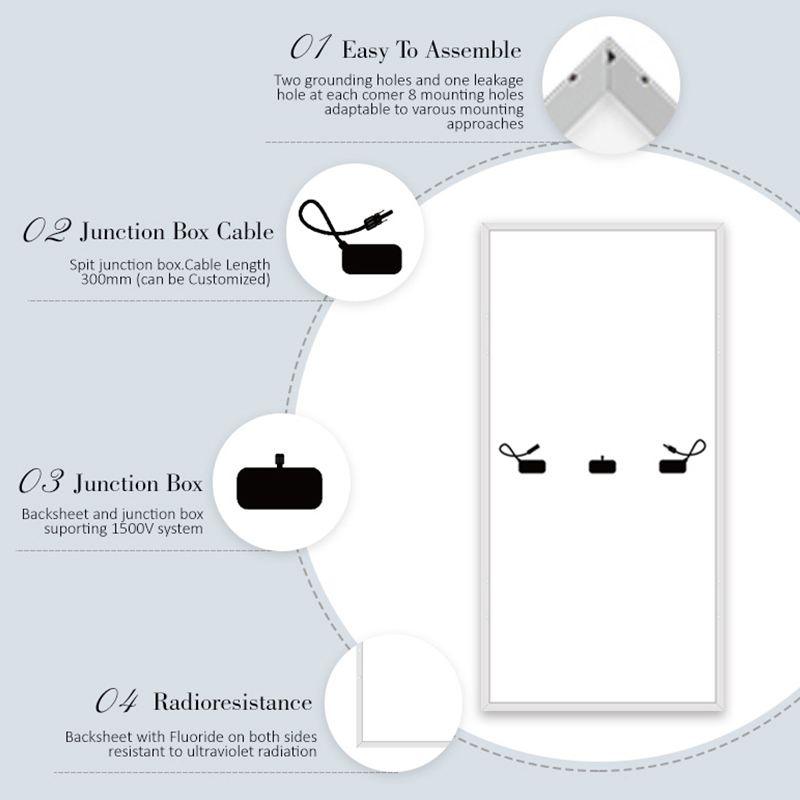

| Junction box/Connector | Ip68,split / MC4 compatible |
Temperaturecoefficient(STC)
| Temperature coefficient of Voc | -0.3%/℃ |
| Temperature coefficient of Isc | +0.06%/℃ |
| Temperature coefficient of Pm | -0.39%/℃ |
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient
temperature=25℃,AM=1.5 |
Quality warranty
12-year material & workmanship warranty
30-year linear power warranty
RFQ
Q1 : What about delivery time?
A : Goods : 10-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized
packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before
packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
- year linear power warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and
MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 20 years produce
experience.We have cooperation projects with governments and
well-known companies and have won a good reputation.
Self-branded
Formed in 2001,has a total of 500 employees. It has two
manufacturing bases, with area 180000㎡ and fully automatic
production lines.
Industry Experience
Rixin Technology is a clean energy company as well as one of the
China’s leading crystalline silicon solar power companies.
Competitive products

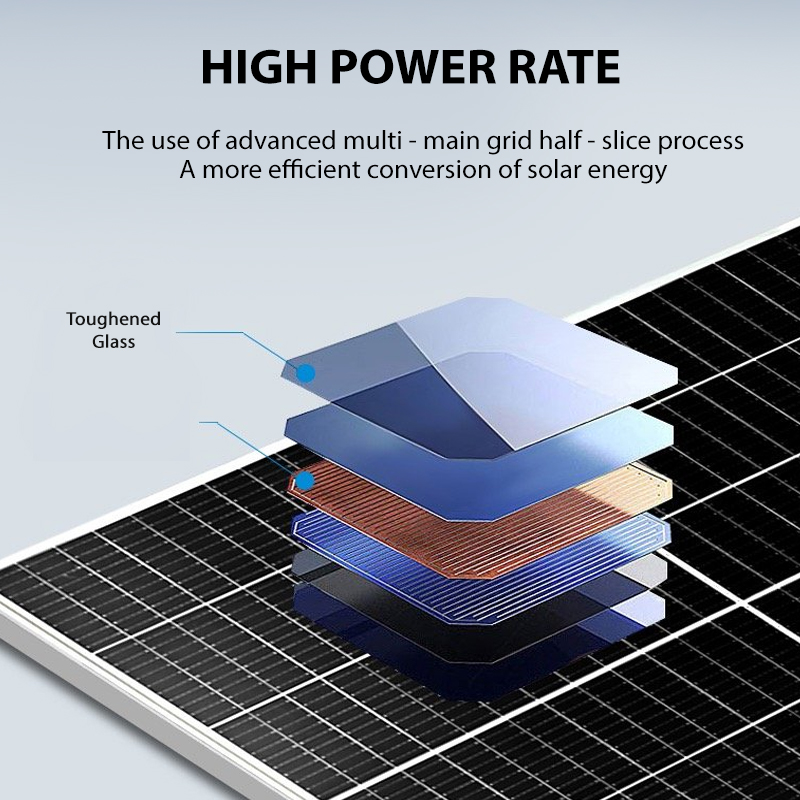

High efficiency Perc mono half-cut bifacial module, BIPV laminated
double glass module, Perc mono/poly framed solar panel, solar power
system etc, at present, Rixin Technology’s total installed capacity
of solar projects exceeds 1GW.
Professional Team
Professional saling service and after-sale service.
R&D staff is over 10% employees.
Perfect logistics and warehousing services.
Certificate standard
Have IEC61215, IEC61730, CE, ISO9001 ,ISO14001 certificates
