120 Cells Rixin 455W Half Cut Cell Monocrystalline Mono Solar Cells
Solar Panel
Key Features
1. High cell efficiency with quality silicon materials for long
term output stability
2. Strictly quality control ensure the stability and reliability,
totally 23 QC procedures
3. Manufactured according to international quality and environment
Mangement System(ISO9001, ISO14001)
4. High efficiency crystalline silicon solar cells
5. Anodized aluminum frame improves load resistance capabilities
for heavy wind loads
6. standard waterproof junction box
7. High endurance to different weather
8. Good and friendly package with less transportation and storage
space
Advantages:
1). Enjoy our Excellent quality, competitive price, prompt delivery
and on-time service
2). High efficiency, high safety, High stability ,high reliability
3). Customized design is available, OEM is welcomed
4). Optimized Packaging to protect product during loading and
delivery .
5). Strong productive ability and quick delivery .
Electrical performance parameters
| 120 Cells Rixin 455W Half Cut Cell Monocrystalline Mono Solar Cells
Solar Panel |
| STC (AM1.5, 1000W/m², cell temperature 25℃) |
| Model | DBG455(P) |
| Maximum power (Pm/Wp) | 455 |
| Maximum power voltage (Vmp/V) | 34.98 |
| Maximum power current (Imp/A) | 13.01 |
| Open circuit voltage (Voc/V) | 41.63 |
| Short circuit current (Isc/A) | 13.9 |
| Module efficiency (%) | 20.8 |
| Normal operating cell temperature (NOCT) | 45±2℃ |
| Temperature coefficient of Voc | -0.0.35%/℃ |
| Temperature coefficient of Isc | 0.0275%/℃ |
| Temperature coefficient of Pm | -0.45%/℃ |
| Power tolerance (W) | 0~+5 |
General performance parameters
| Mechanical performance parameters |
| Module dimension (L*W*H) (mm) | 1909*1134*35 |
| Cell dimension(mm) | 182mm Mono cells |
| Module weight (kg) | 24 |
| Cable | cable section-4mm2 length-1000mm |
| Cell Nos & array | 120(2*6*10) |
| Packing | 155pcs/20GP; 744pcs/40HQ |
| Quality parameters |
| Module working temperature range (℃) | -40~+85 |
| Maximum system voltage (V Dc) | 1000 |
| System maximum protection current (A) | 15 |
| Maximum wind loads/maximum snow loads (Pa) | 2400/5400 |
| Hot-spot resistance | 100% hot-spot free |

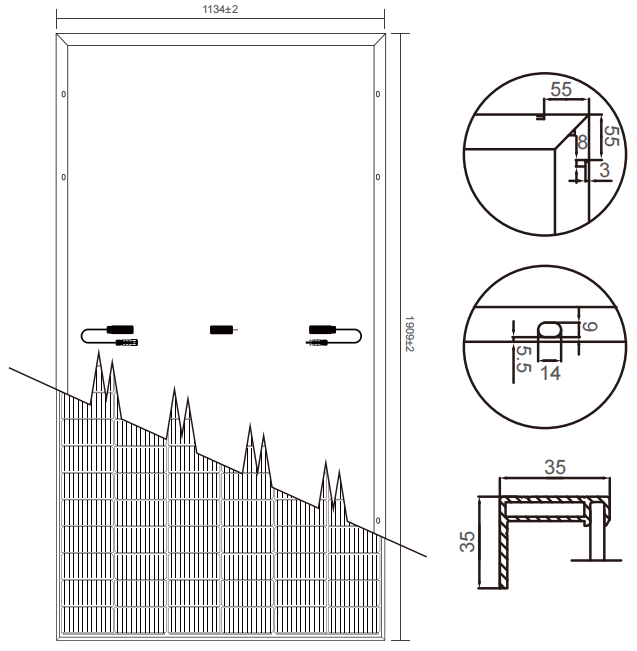

Drawing(mm)
Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
About Rixin:
♦ Founded in 2001 , 500MW solar panel production capacity
♦ Three factories , Wuhan solar panel factory , Huangshi Solar
Panel factory , Huangshi Solar Brackets factory
♦ Products are exported to many countries all over the world
♦ Products are certified by TUV(Germany) , CE
♦ Turn-key solar systems are offered , to save the time and money
for the clients
♦ Rich experience in overseas construction of solar projects
