Rixin Transparent Solar PV Module Monocrystalline Bifacial
Self-Cleaning Coated Glass
BIPV Bifacial PV Components

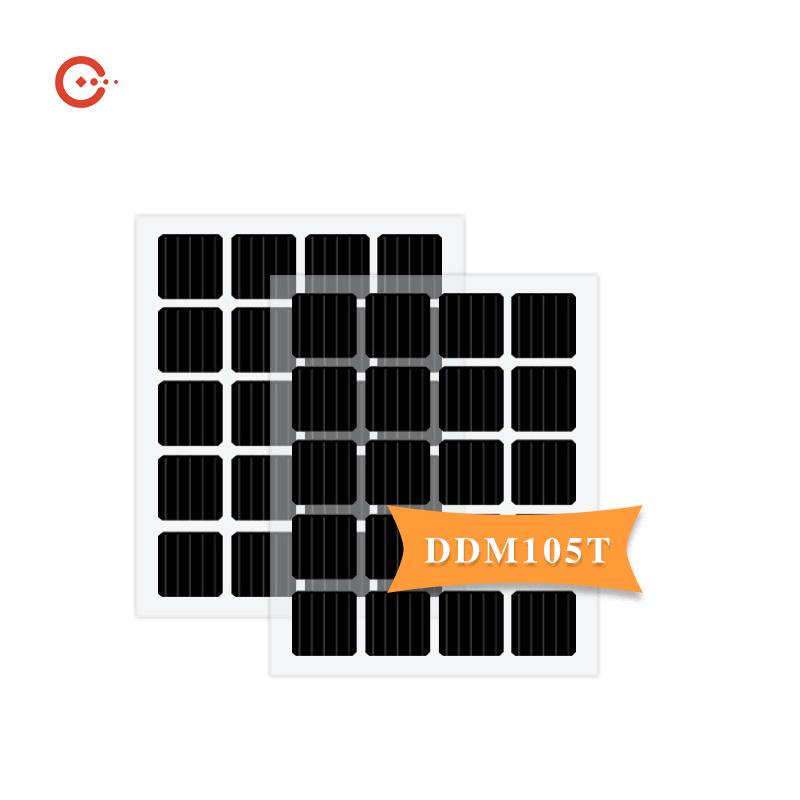

Monocrystalline Laminated Glass Module DDM105T
Performance Parameters
| Model | DDM-105T |
| Maximum power at STC (Pm/Wp) | 105 |
| Maximum power voltage (Vmp/V) | 11.0 |
| Maximum power current (lmp/V) | 9.55 |
| Open circuit voltage (Voc/V) | 13.0 |
| Short circuit current (Isc/A) | 10.51 |
| Transparent (%) | 28.5 |
| Working temperature (℃) | -40~ +85 |
| Fault structure (mm) | 3.2mm tempered glass+0.5EVA+bifacial mono cells+0.5EVA+3.2mm
tempered glass |
| Cable | 4m㎡/300mm |
| Dimension (mm) | 952mm*742mm |
| Weight (kg) | 12.5kg |
| Wind loads resistance | 2.4KN/㎡ |
| Cells No. | 20 (5*4) |
*STC (AM1.5,1000w/㎡,cell temperature 25℃) 10-year material & workmanship warranty 30-year linear power warranty |
Rixin Technology is a clean energy company as well as one of the
China’s leading crystalline silicon solar power companies,
committed to change the world by solar energy.
Formed in 2001, the company is headquartered in Wuhan.It has two
manufacturing bases, with area 180000 square meters and fully
automatic production lines. Through its rational investment and
industrial, Rixin Technology has formed an entire chain including
R&D of core technology, manufacturing, integration and service
etc.
With core products covering high efficiency Perc mono half-cut
bifacial module, BIPV laminated double glass module, Perc mono/poly
framed solar panel, solar power system etc, at present, Rixin
Technology’s total installed capacity of solar projects exceeds
1GW.
Rixin Technology believes that high efficiency crystalline modules
will define the future of PV industry. Rixin Technology specializes
in the development of high efficiency crystalline solar technical
roadmap and it has become great PV companies in terms of its scale
and the leading expertise in China.
We use top-quality solar cells and EVA, TPT, strengthen glass, seal
silicone etc. Our experienced staffs work together well to
assurance quality under effective ISO system, CE, to assure our
quality Our products are exported to Europe, America and Asian
countries with safety certificates.
Our value is coordination, innovation, sincerity, service. We will
make unremitting efforts to be your great partner on your path of
the photovoltaic wealth.
RFQ
Q1 : What about delivery time?
A : Samples:within 7 working days.
Goods : 7-15 working days usually.
Q2 : Can you provide OEM service?
A : Yes,we can.Including customized logo/customized
packaging/Graphic customization.
Q3 : Do you test the goods before shipment ?
A : Yes,we have professional QC team to test all the goods before
packing.And we will check the packing before shipment.
Q4 : What about the quality warranty?
A : 12-year material & workmanship warranty.
- year linear power warranty.
Q5: What is you payment terms?
A : We accept T/T bank transfer,L/C, Paypal, Western union and
MonryGram.
Q6 :What is your products’ advantage?
A : First ,we own our brand and we have over 20 years produce
experience.We have cooperation projects with governments and
well-known companies and have won a good reputation.
Self-branded
Formed in 2001,has a total of 500 employees. It has two
manufacturing bases, with area 180000㎡ and fully automatic
production lines.
Industry Experience
Rixin Technology is a clean energy company as well as one of the
China’s leading crystalline silicon solar power companies.
Competitive products
High efficiency Perc mono half-cut bifacial module, BIPV laminated
double glass module, Perc mono/poly framed solar panel, solar power
system etc, at present, Rixin Technology’s total installed capacity
of solar projects exceeds 1GW.
Professional Team
Certificate standard
Have IEC61215, IEC61730, CE, ISO9001 ,ISO14001 certificates
