    Renewable Energy System Bifacial Solar Panels 182mm 144pcs Monocrystalline Solar Cells

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : Renewable Energy System
    Certification : GB, ISO, TUV, CE
    Price : Negotiable
    Supply Ability : 3GW per year
    Delivery Time : 15 working days after order onfirmation
    • Product Details
    • Company Profile

    Renewable Energy System Bifacial Solar Panels 182mm 144pcs Monocrystalline Solar Cells

    Renewable Energy System Bifacial Solar Panels 182mm 144pcs Monocrystalline Solar Cells


    Mono DDP315-325(K)

    ModelDDP315(K)DDP320(K)DDP325(K)
    Maximum power(Pm/Wp)315320325
    Maximum power voltage(Vmp/V)29.329.429.5
    Maximum power current(lmp/V)10.7510.8811.00
    Open circuit voltage(Voc/V)35.93636.1
    Short circuit current(Isc/A)11.5411.6011.66
    Module efficient(%)19.019.319.6

    Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5


    Mechanical performance parameters

    Cell Nos & arrayMono half-cut cells 108 (6*9*2)
    Appearance colorBlack
    Cable4m㎡ negetive1000mm,positive1000mm
    Module weight (kg)19
    Module dimension (L*W*H)(mm)1600*1036*5mm
    Packing33pcs/pallet
    Power optimizer matching form2 modules equipped with 1 optimizer

    Quality parameters

    Module working temperature range (℃)-40~ +85
    Power tolerance(W)0~+5
    Maximum system voltage(V)DC1500
    System maximum protection current(A)20
    NOCT(℃)45±2
    Front/rear static loads(Pa)2400 /2400
    Junction box/ConnectorIp68,split / MC4 compatible

    Temperaturecoefficient(STC)

    Temperature coefficient of Voc-0.3%/℃
    Temperature coefficient of Isc+0.06%/℃
    Temperature coefficient of Pm-0.39%/℃
    Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5

    Quality warranty

    12-year material & workmanship warranty

    30-year linear power warranty



    Datasheet of Renewable Energy System

    SPECIFICATION

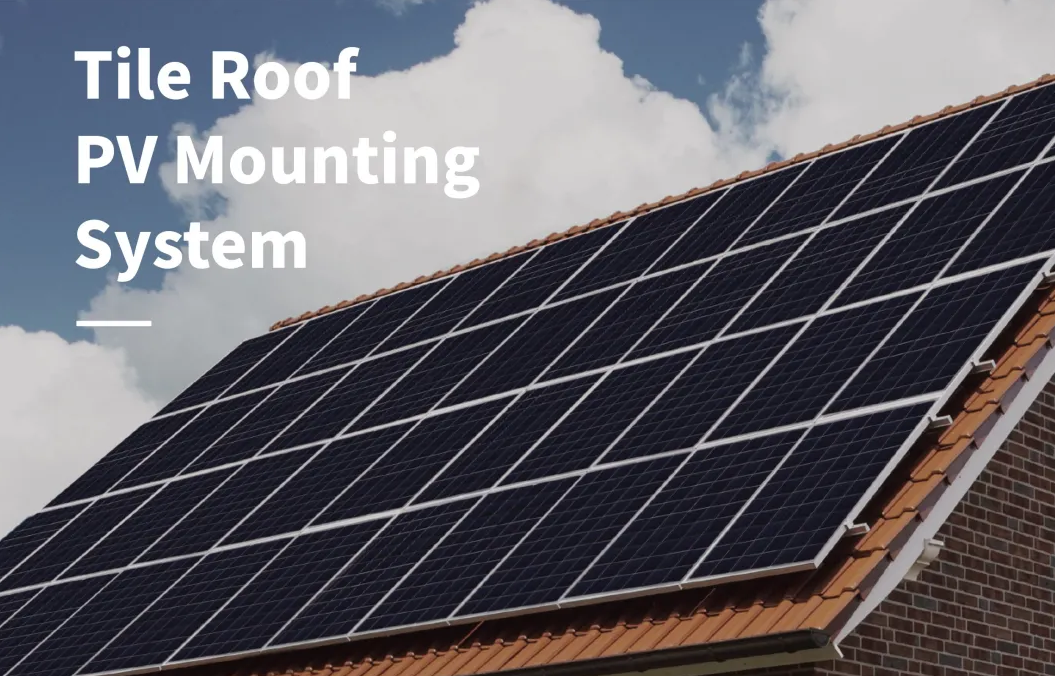

    DescriptionGround mountingRoof bracketCarportAgricultural bracketSingle column stand
    Field statusopen area
    Max wind load≤60m/s/<46m/s<46m/s≤46m/s
    HeightDepending
    Snow loadDepending
    Tilt Angle0~45°As per requirement0~45°0~30°0~45°
    Mount DirectionsVertical,horizontal
    StandardGB/T2518-2008 & GB/T10125-2012
    Body materialS550GD+Z350
    Bolt materialSUS304
    Base materialQ235/Cement
    Surface treatmentGalvanized mg-al
    Warranty10 Years

    Why it's worth to choose Rixin system for photovoltaic farms?


    Up to 25 years' product warranty on anti-corrosion coating

    High durability

    Extremely high corrosion resistance

    No electrocorrosion effect

    Safety and standards confirmed by certificates
