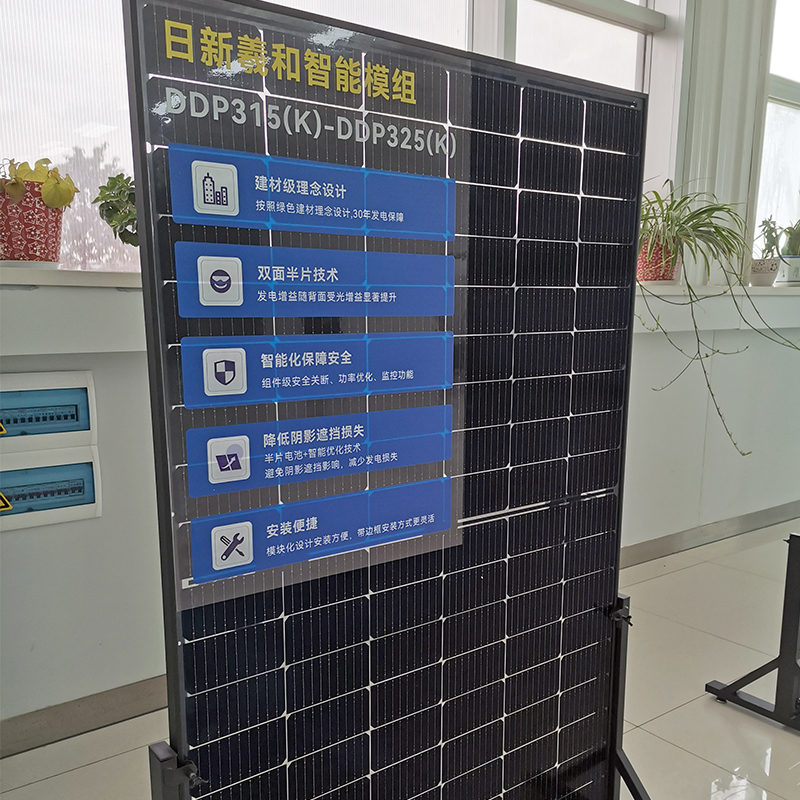

    High Hot-spot Resistance Bifacial Solar Panels High Corrosion Resistance Solar Panel

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : High Durability Extremely High Corrosion Resistance Solar Panel
    Certification : GB, ISO, TUV, CE
    Price : Negotiable
    Supply Ability : 3GW per year
    Delivery Time : 15 working days after order onfirmation
    • Product Details
    • Company Profile

    High Hot-spot Resistance Bifacial Solar Panels High Corrosion Resistance Solar Panel

    High Hot-spot Resistance Bifacial Solar Panels High Corrosion Resistance Solar Panel

    Mechanical performance parameters

    Cell Nos & arrayMono half-cut cells 144 pcs
    Cell size (mm)182*91
    Glass thickness (mm)2.0
    FrameAnodized alaminum alloy
    Cable4m㎡ negetive300mm, positive300mm
    Module weight (kg)32.1
    Module dimension (L*W*H)(mm)2285*1134*35mm
    Packing31pcs/pallet

    Quality parameters

    Module working temperature range (℃)-40~ +85
    Power tolerance(W)0~+5
    Maximum system voltage(V)DC1500
    System maximum protection current(A)25
    NOCT(℃)45±2
    Front/rear static loads(Pa)2400 / 5400
    Junction box/ConnectorIp68,split / MC4 compatible


    Datasheet of Great Strength and Strong Weatherability Solar Panel Mounting Brackets

    SPECIFICATION
    DescriptionGround mountingRoof bracketCarportAgricultural bracketSingle column stand
    Field statusopen area
    Max wind load≤60m/s/<46m/s<46m/s≤46m/s
    HeightDepending
    Snow loadDepending
    Tilt Angle0~45°As per requirement0~45°0~30°0~45°
    Mount DirectionsVertical,horizontal
    StandardGB/T2518-2008 & GB/T10125-2012
    Body materialS550GD+Z350
    Bolt materialSUS304
    Base materialQ235/Cement
    Surface treatmentGalvanized mg-al
    Warranty10 Years

    Rixin Solar Galvanized Steel Ground Mount System is available for your agricultural, commercial, and residential applications. This systems makes solar power accessible without the need of a roof for installation. Ground-mounted solar system is affordable, durable, efficient and quick to install.


    Design parameters


    -Basic wind pressure: 0.35kN/m2;

    -Basic snow pressure:0.55kN/m2

    -Regional limit maximum wind speed: 23.8m/s

    -Stent spacing for base plate :3000mm;
    -Stents Angle: 22 degree


    Features


    Light, thin and strong steels, enabling the design of efficient and cost-effective solar structures.

    These steel grades allow to create lighter structures, and their higher resistance offers new design opportunities.

    Strong Corrosion Resistance.
    Ground screw foundation and concrete foundation can be acceptable
    Parts have been high pre-assembly on factory to save your installation time
    Simple and fast installation
    High quality galvanized steel material
    Quick delivery



    Advantages


    Up to 25 years' product warranty on anti-corrosion coating

    High durability

    Extremely high corrosion resistance

    Magnelis ability for self-repair

    No electrocorrosion effect

    Safety and standards confirmed by certificates


    Test method


    -Test method: GB/T10125-2012-Sample placement: 15°~25° with vertical direction

    -Settlement salt solution concentration: (50+/-5) g/l NaCl

    -Temperature inside the test chamber: (35+/-2) ºC

    -Settlement rate of salt spray: 1~2ml (80cm2.h)

    -Settlement salt solution pH value (25ºC+/-2ºC): 6.5~7.2-Exposure time: 720 hours (check once every 96 hours)

    -Cleaning method: natural dry for 0.5~1.0 hours, then rinse with water of temperature not higher than 40ºC, then dry immediately.

    Why choose us for your solar system PV mounting brackets?
    -Super anti-rusting performance
    -High precision of structure material
    -Save raw material, and cost 20%
    -200MW monthly production capacipty, ensures short lead production time
    -Perfect finish of structure material, hence the nice solar mounting effect
