    530W 540W Mono Perc Half Cut Solar Panels 550W Mbb High Capacity Solar Panels

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : SKT535M10
    Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 3GW/year
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    530W 540W Mono Perc Half Cut Solar Panels 550W Mbb High Capacity Solar Panels

    Solar Panel System Half Solar Cell Solar Module 530W 540W 550W Mbb Solar Panel

    Key Features
    1. Positive Power tolerance (0-5W) Guaranteed

    2. High Module Conversion efficiency ( up to 20.3%)

    3. Solar power degradation -- Enabled by low LID Mono PERC Technology: First year < 2%

    4. Solid PID Resistance -- Ensured by solar solar cell process opitimization and careful module BOM Selection

    5. Reduced Resistive -- loss with lower operating current

    6. Higher energy yield--With lower operating temperature

    7. Reduced Hot Spot Risk -- With Optimized electrical design and lower operating current


    Electrical performance parameters

    Solar Panel System Half Solar Cell Solar Module 530W 540W 550W Mbb Solar Panel
    STC (AM1.5, 1000W/m², cell temperature 25℃)
    ModelSKT535M10
    Maximum power (Pm/Wp)535
    Maximum power voltage (Vmp/V)49.45
    Maximum power current (Imp/A)13.79
    Open circuit voltage (Voc/V)41.47
    Short circuit current (Isc/A)12.9
    Module efficiency (%)20.7
    Normal operating cell temperature (NOCT)45±2℃
    Temperature coefficient of Voc-0.0.35%/℃
    Temperature coefficient of Isc0.0275%/℃
    Temperature coefficient of Pm-0.45%/℃
    Power tolerance (W)0~+5

    General performance parameters

    Mechanical performance parameters
    Module dimension (L*W*H) (mm)2279*1134*35
    Cell dimension(mm)182mm Mono cells
    Module weight (kg)28.6
    Cablecable section-4mm2 length-1000mm
    Cell Nos & array144(2*6*12)
    Packing124pcs/20GP; 620pcs/40HQ
    Quality parameters
    Module working temperature range (℃)-40~+85
    Maximum system voltage (V Dc)1000
    System maximum protection current (A)15
    Maximum wind loads/maximum snow loads (Pa)2400/5400
    Hot-spot resistance100% hot-spot free

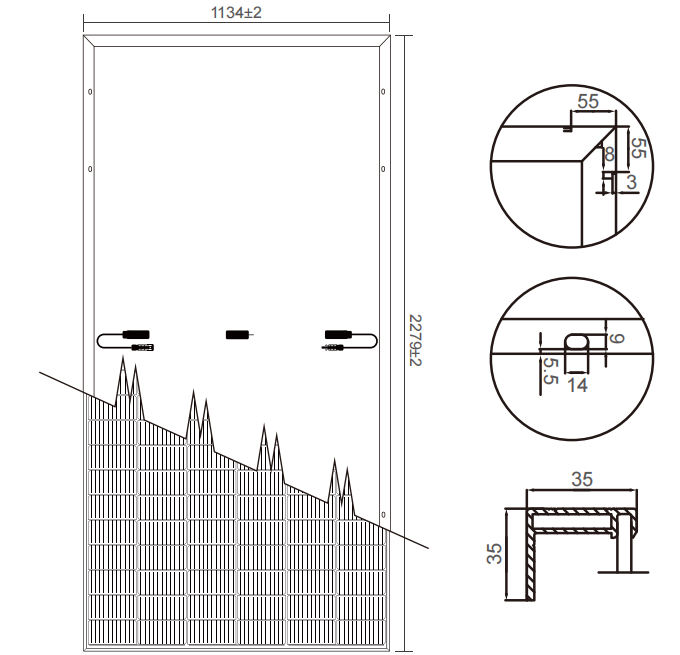

    Drawing(mm)





    Quality Warranty
    10-year materials&workmanship warranty
    25-year linear power warranty
