400 Watts High Power Solar Panels Monocrystalline 405w Mono Perc Half Cut Panels

    Buy cheap 400 Watts High Power Solar Panels Monocrystalline 405w Mono Perc Half Cut Panels from wholesalers

    Buy cheap 400 Watts High Power Solar Panels Monocrystalline 405w Mono Perc Half Cut Panels from wholesalers
    • Buy cheap 400 Watts High Power Solar Panels Monocrystalline 405w Mono Perc Half Cut Panels from wholesalers

    400 Watts High Power Solar Panels Monocrystalline 405w Mono Perc Half Cut Panels

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : SKT405M10
    Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 3GW/year
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    400 Watts High Power Solar Panels Monocrystalline 405w Mono Perc Half Cut Panels

    400 Watts Solar Panel Monocrystalline 405 Mono Half Cell Solar Panels 410W Wholesale Solar Panels Manufacturers

    Product Certificates:


    TUV SUD / CE / IEC / TUV NORD / COC / INMETRO


    Management System


    ISO 9001 -- Quality Management System


    ISO 14001 -- Standard for environmental management system


    OHSAS 18001 -- International standard for occupational health and safety accessment system


    Electrical performance parameters

    400 Watts Solar Panel Monocrystalline 405 Mono Half Cell Solar Panels 410W Wholesale Solar Panels Manufacturers
    STC (AM1.5, 1000W/m², cell temperature 25℃)
    ModelSKT405M10
    Maximum power (Pm/Wp)405
    Maximum power voltage (Vmp/V)31.21
    Maximum power current (Imp/A)12.98
    Open circuit voltage (Voc/V)37.23
    Short circuit current (Isc/A)13.87
    Module efficiency (%)20.8
    Normal operating cell temperature (NOCT)45±2℃
    Temperature coefficient of Voc-0.0.275%/℃
    Temperature coefficient of Isc0.045%/℃
    Temperature coefficient of Pm-0.35%/℃
    Power tolerance (W)0~+4.99

    General performance parameters

    Mechanical performance parameters
    Module dimension (L*W*H) (mm)1722*1134*30
    Cell dimension(mm)Mono crystalline 182 mm
    Module weight (kg)20.5
    Cablecable section-4mm2 length-300mm
    Cell Nos & array108(54*2)
    Packing36pcs/pallet, 216/20GP, 936pcs/40HQ
    Quality parameters
    Module working temperature range (℃)-40~+85
    Maximum system voltage (V Dc)1000
    System maximum protection current (A)15
    Maximum wind loads/maximum snow loads (Pa)2400/5400
    Hot-spot resistance100% hot-spot free

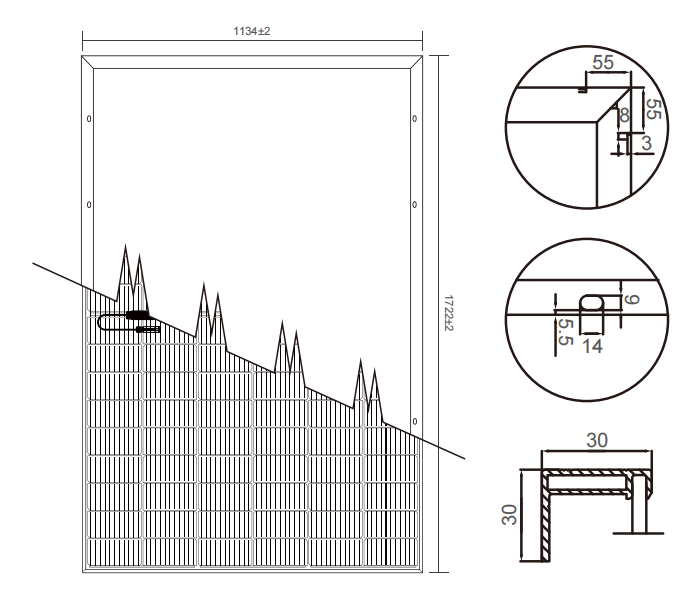

    Drawing(mm)





    Quality Warranty
    10-year materials&workmanship warranty
    25-year linear power warranty



    Founded in 2001 in Wuhan, China, Rixin Technology operates as a global solar power provider, as well as one of the China’s leading crystalline silicon PV modules manufacturer, has been committed to developing clean energy. Rixin Technology has over 180000m2 manufacturing bases, 3 wholly owned subsidiaries and over 10 holding companies, more than 500 employees. Through its rational investment and industrial, Rixin Technology has formed an entire chain including R&D of core technology, PV module production, to “photovoltaic +” project development, design, construction, intelligent operation and maintenance, investment and financing. Its technological strength is shown through its title of National Hi-tech Enterprise and Hubei province PV Research Center.


    After 19 years development, Rixin Technology has completed more than 1500 PV power plants, and built good business relationship with the clients all over the world. The full range of Rixin Technology’s products cover BIPV, PV modules, PV street lights, Household power generation system, commericial distributed generation system, and utility-scale power system. Rixin Technology’s products have obtained TUV, CE, ISO14001, ISO9001, OHSAS18001 etc. international certificates.
