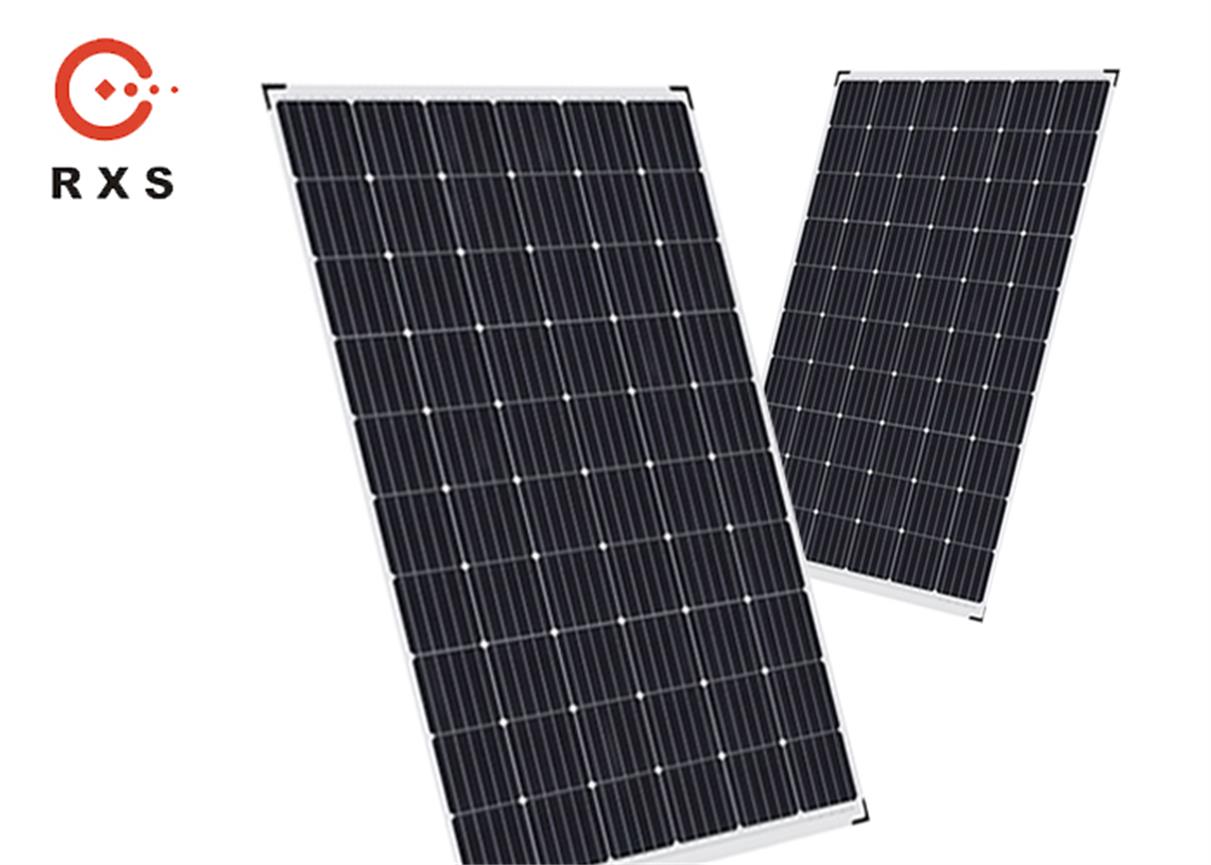

Residential Photovoltaic Standard Solar Panel 325W

    Buy cheap Residential Photovoltaic Standard Solar Panel 325W from wholesalers

    Buy cheap Residential Photovoltaic Standard Solar Panel 325W from wholesalers
    • Buy cheap Residential Photovoltaic Standard Solar Panel 325W from wholesalers
    • Buy cheap Residential Photovoltaic Standard Solar Panel 325W from wholesalers
    • Buy cheap Residential Photovoltaic Standard Solar Panel 325W from wholesalers

    Residential Photovoltaic Standard Solar Panel 325W

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : DDP325(K)
    Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 3MW/year
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Residential Photovoltaic Standard Solar Panel 325W

    Residential Standard Solar Panel , 325W Photovoltaic wholesale solar panels prices


    The solar panel is made to our specifications , the systems are ideal for homeuse with fridge ,light, and other home applicance. clean energy is needed. They are very popular among the international market and will the future tender of new energy.


    Main Features

    1. High power output

    30 year linear performance warranty, more than 30% additional power gain.


    2. Zero LID & PID

    No LID, more power generation.

    No PID, stable power generation.


    3. Fire safety performance

    Higher fire safety class to minimize fire risks.


    4. Outstanding module performance

    Higher power output, even under low light conditions.

    Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.


    5. Wider applications & more flexible installed angle

    No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.


    Electrical performance parameters

    ModelDDP315(K)DDP320(K)DDP325(K)
    Maximum power(Pm/Wp)315320325
    Maximum power voltage(Vmp/V)29.329.429.5
    Maximum power current(lmp/V)10.7510.8811.00
    Open circuit voltage(Voc/V)35.93636.1
    Short circuit current(Isc/A)11.5411.6011.66
    Module efficient(%)18.819.119.4

    Mechanical performance parameters

    Cell Nos & arrayMono half-cut cells 108 (6*9*2)
    Appearance colorBlack
    Cable4m㎡ negetive1000mm,positive1000mm
    Module weight (kg)20
    Module dimension (L*W*H)(mm)1606*1042*30mm
    Packing30pcs/pallet
    Power optimizer matching form2 modules equipped with 1 optimizer

    Quality parameters

    Module working temperature range (℃)-40~ +85
    Power tolerance(W)0~+5
    Maximum system voltage(V)DC1500
    System maximum protection current(A)20
    NOCT(℃)45±2
    Front/rear static loads(Pa)2400 / 3600
    Junction box/ConnectorIp68,split / MC4 compatible

    Temperaturecoefficient(STC)

    Temperature coefficient of Voc-0.3%/℃
    Temperature coefficient of Isc+0.06%/℃
    Temperature coefficient of Pm-0.39%/℃
    Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5

    Drawing(mm)


    Quality Warranty

    10-year materials&workmanship warranty

    30-year linear power warranty

    Quality Residential Photovoltaic Standard Solar Panel 325W for sale
