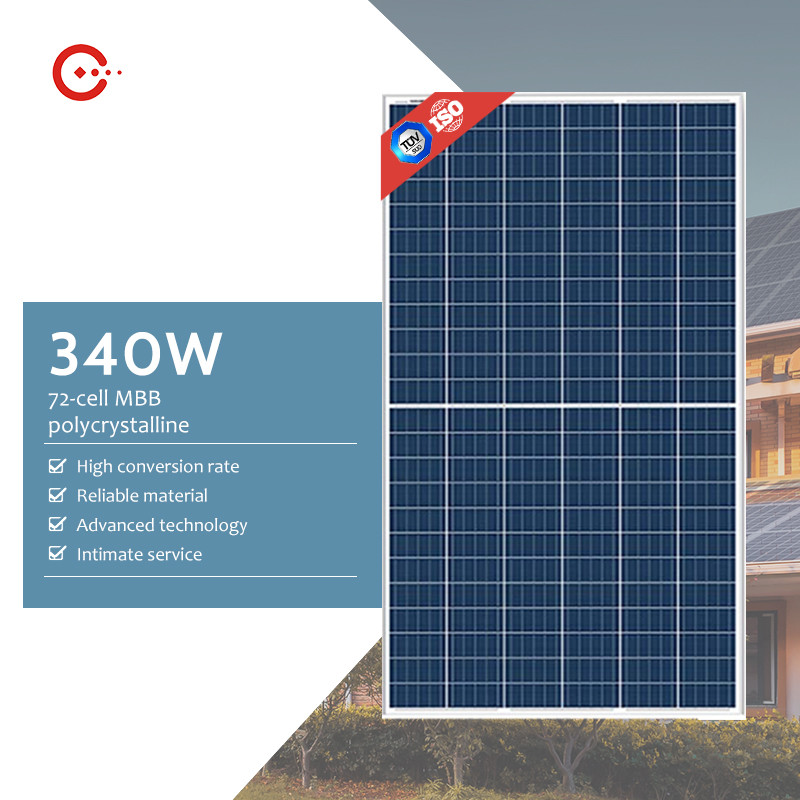

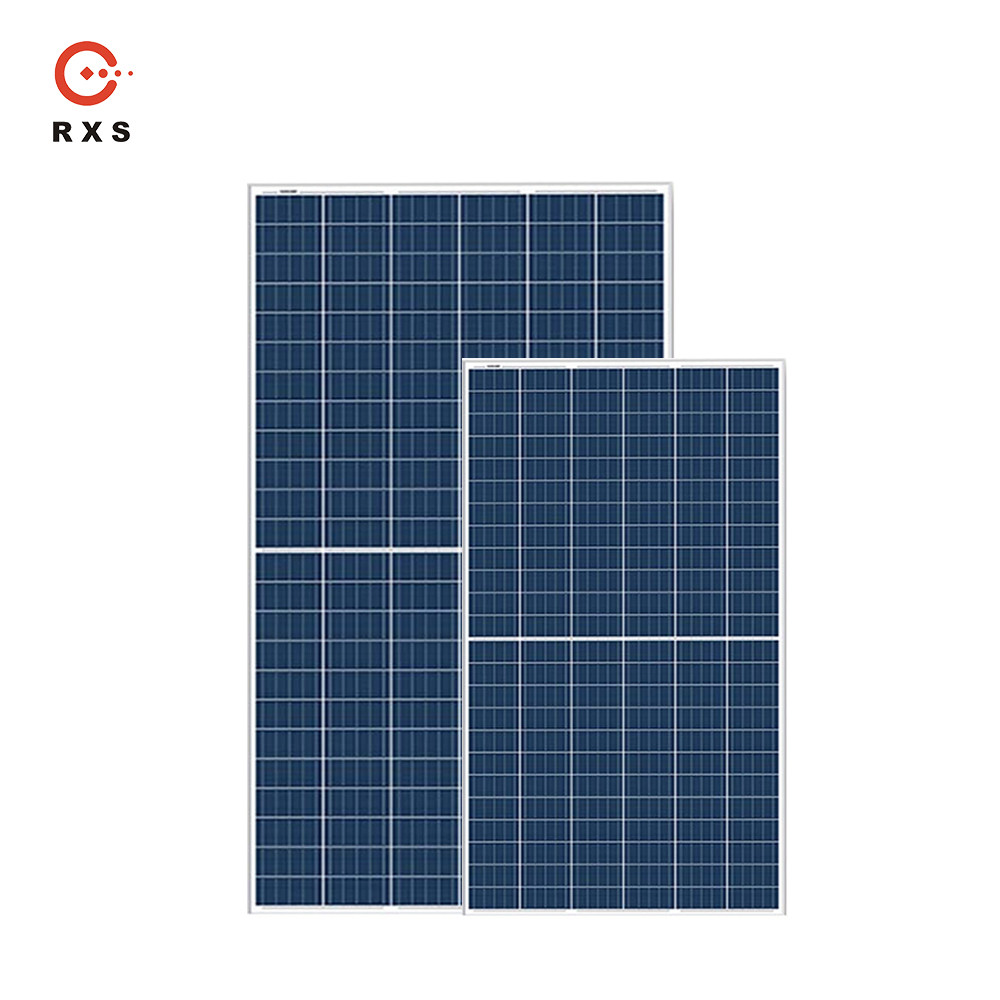

High Efficiency High Power Solar Panels 340W Perc Half Solar Panel

    Buy cheap High Efficiency High Power Solar Panels 340W Perc Half Solar Panel from wholesalers

    Buy cheap High Efficiency High Power Solar Panels 340W Perc Half Solar Panel from wholesalers
    • Buy cheap High Efficiency High Power Solar Panels 340W Perc Half Solar Panel from wholesalers
    • Buy cheap High Efficiency High Power Solar Panels 340W Perc Half Solar Panel from wholesalers

    High Efficiency High Power Solar Panels 340W Perc Half Solar Panel

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : MBG340
    Certification : CE\IEC\TUV\ISO14001
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3GW/YEAR
    Delivery Time : 7-10 working days after payment
    • Product Details
    • Company Profile

    High Efficiency High Power Solar Panels 340W Perc Half Solar Panel

    Rixin Factory Price High Power Solar Panels High Efficiency Newest Technology 340W Perc Half Solar Panel


    Characteristics solar panel

    1. Manufactured according to international quality and Environment Management System (ISO9001, ISO14001)

    2. High efficiency crystalline silicon solar cells

    3. High transmission Iow iron tempered glass, strong mechanical resistance

    4. Anti-ageing EVA and excellent anti-climate back sheet

    5. Anodized aluminum frame improves load resistance capabilities for heavy wind loads.

    6. Standard waterproof junction box

    7. High endurance to different weather

    8. Good and friendly package with less transportation and storage space.


    High Efficiency High Power Solar Panels 340W Perc Half Solar Panel

    MBG330~340
    Electrical performance parameters
    Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient temperature=25℃,AM=1.5
    TypeMDG330MDG335MDG340
    Maximum power(Pm/Wp)330335340
    Maximum power voltage(Vmp/V)37.037.137.2
    Maximum power current(lmp/V)8.909.039.14
    Open circuit voltage(Voc/V)45.045.145.2
    Short circuit current(Isc/A)9.9810.0810.18
    Module efficient(%)16.516.717
    NOCT(℃)45±2℃
    Temperature coefficient of Voc-0.31%/℃
    Temperature coefficient of Isc0.05%/℃
    Temperature coefficient of Pm-0.41%/℃
    Power tolerance(W)0~+5
    Mechanical performance parameters
    Module dimension (L*W*H)(mm)2015*996*35
    Module weight (kg)28
    Cable4mm2 negetive300mm, positive300mm
    Junction box/ConnectorIp68,split / MC4 compatible
    Cell size (mm)Poly half cell 144(6*12*2)
    Packing30pcs/pallet
    Quality parameters
    Module working temperature range (℃)-40~+85
    Maximum system voltage(V)1500DC
    System maximum protection current(A)15
    Maximum wind pressure/maximum snow pressure (Pa)2400/5400
    High Efficiency High Power Solar Panels 340W Perc Half Solar Panel

    Main Features

    1. High power output

    30 year linear performance warranty, more than 30% additional power gain.


    2. Zero LID & PID

    No LID, more power generation.

    No PID, stable power generation.


    3. Fire safety performance

    Higher fire safety class to minimize fire risks.


    4. Outstanding module performance

    Higher power output, even under low light conditions.

    Excellent low irradiation performance and below -0.38% /℃ temperature coefficient of Power.


    5. Wider applications & more flexible installed angle

    No water-permeability and high wear-resistance, can be widely used in high-humid, strong wind&sand areas and not limited to traditional slope installation.

    25 Years Solar Panel Warranty 340w 350w 360w Pv Solar Panels Home Solar Cell Price


    RFQ

    Q1 : What about delivery time?

    A : Goods : 10-15 working days usually.

    Q2 : Can you provide OEM service?

    A : Yes,we can.Including customized logo/customized packaging/Graphic customization.

    Q3 : Do you test the goods before shipment ?

    A : Yes,we have professional QC team to test all the goods before packing.And we will check the packing before shipment.

    Q4 : What about the quality warranty?

    A : 12-year material & workmanship warranty.

    30-year linear power warranty.

    Q5: What is you payment terms?

    A : We accept T/T bank transfer,L/C, Paypal, Western union and MonryGram.

    Q6 :What is your products’ advantage?

    A : First ,we own our brand and we have over 20 years produce experience.We have cooperation projects with governments and well-known companies and have won a good reputation.
