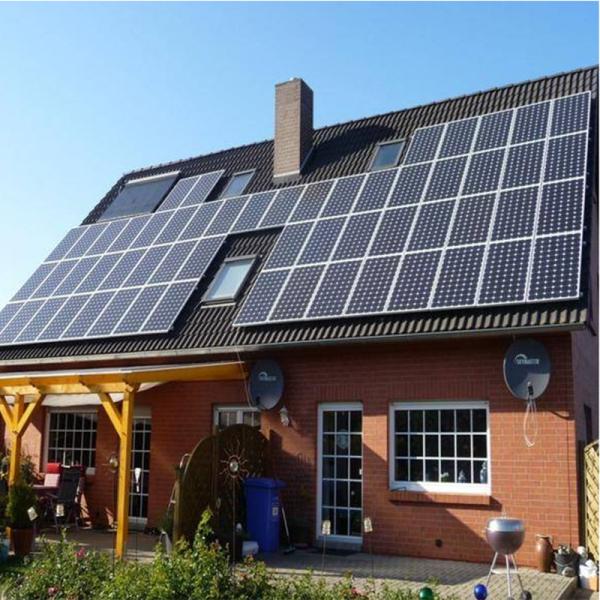

Rixin PREC Monocrystalline Solar PV Module Rotating Shading On the
Building
Rixin Technology is a clean energy company as well as one of the
China’s leading crystalline silicon solar power companies,
committed to change the world by solar energy.
Formed in 2001, the company is headquartered in Wuhan, China and
has a total of 500 employees. It has two manufacturing bases, with
area 180000㎡ and fully automatic production lines. Through its
rational investment and industrial, Rixin Technology has formed an
entire chain including R&D of core technology, manufacturing,
integration and service etc.
With core products covering N-type mono bifacial double glass solar
panel, high efficiency Perc mono double glass solar panel,
mono/poly double glass solar panel, Perc mono/poly framed solar
panel, utility-scale solar power station etc, at present, Rixin
Technology’s total installed capacity of solar projects exceeds
3GW.
Rixin Technology believes that high efficiency crystalline modules
will define the future of PV industry. Based on this strategic
thinking, Rixin Technology specializes in the development of high
efficiency crystalline solar technical roadmap and it has become
one of the largest PV companies in terms of its scale and the
leading expertise in China.
We use top-quality solar cells and EVA,TPT,strengthen glass,seal
silicion etc. Our experienced staffs work together well to
assurance quality under effective ISO system. We have IEC61215,
IEC61730 certificates, CE, to assure our quality. Our products are
exported to Europe, America and other Asian countries with safety
certificates.
With many years development as a trustworthy manufacturer, Rixin
Technology’s products enjoy high reputation in the world market.We
have attended many exibitions each year.
Our value is coordination, innovation, sincerty, service. We will
make unremitting efforts to be your best partner on your path of
the photovoltaic weath.

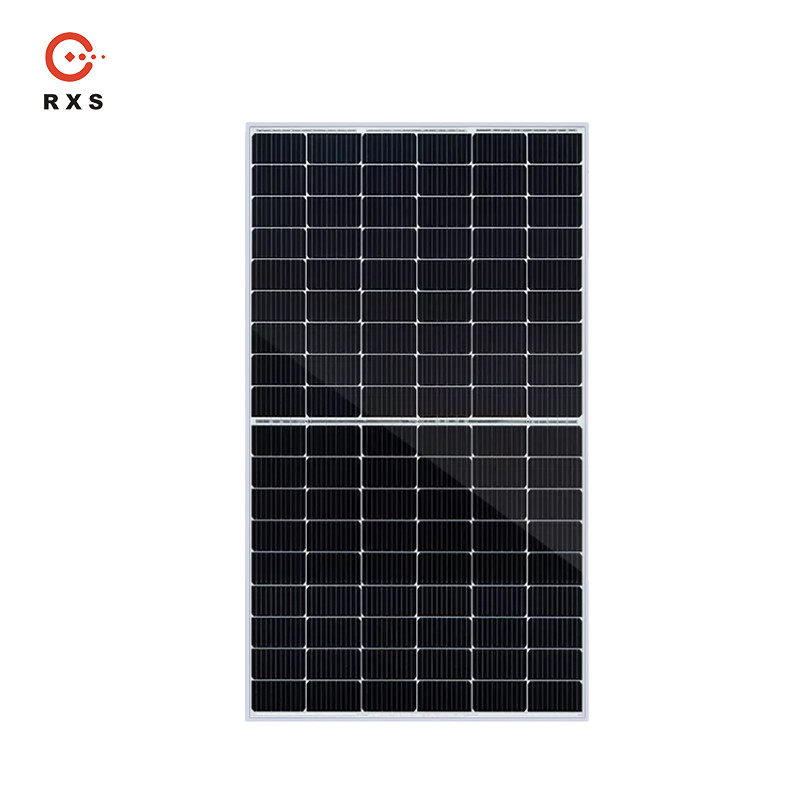

Mono solar Module DBP400
| Model | DBP410 |
| Maximum power(Pm/Wp) | 410 |
| Maximum power voltage(Vmp/V) | 31.78 |
| Maximum power current(lmp/V) | 12.9 |
| Open circuit voltage(Voc/V) | 38.03 |
| Short circuit current(Isc/A) | 13.64 |
| Module efficient(%) | 21 |
Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient
temperature=25℃,AM=1.5
Mechanical performance parameters
| Cell Nos & array | Mono half-cut cells 108 pcs |
| Cell size (mm) | 182*91 |
| Glass thickness (mm) | 3.2 |
| Frame | Anodized alaminum alloy |
| Cable | 4m㎡ negetive300mm, positive300mm |
| Module weight (kg) | 24 |
| Module dimension (L*W*H)(mm) | 1722*1134*35mm |
| Packing | 31pcs/pallet |
Quality parameters
| Module working temperature range (℃) | -40~ +85 |
| Power tolerance(W) | 0~+5 |
| Maximum system voltage(V) | DC1500 |
| System maximum protection current(A) | 25 |
| NOCT(℃) | 45±2 |
| Front/rear static loads(Pa) | 2400 / 5400 |
| Junction box/Connector | Ip68,split / MC4 compatible |
Temperaturecoefficient(STC)
| Temperature coefficient of Voc | -0.275%/℃ |
| Temperature coefficient of Isc | +0.05%/℃ |
| Temperature coefficient of Pm | -0.35%/℃ |
| Test condition:irradiance=(1+0.1BiFi)1000W/㎡,ambient
temperature=25℃,AM=1.5 |
Quality warranty
12-year material & workmanship warranty
25-year linear power warranty
