230W Innovative Facade
Design and Engineering - BIPV Curtain
Wall
The main characteristics are high strengthen and strike resistance,
suitable for most buildings, such as flat rooftop, pitched rooftop,
curtain wall, ceiling. Have a better light transmittance effect
when used for curtain wall and ceiling, and could greatly improve
the indoor lighting.
Main Features
1. Solar power generation, supply clean energy for buildings.
2. Completely according with national standard for building
materials.
3. Higher strength, wind resistance, strike resistance, safer.
4. Sound insulation, heat insulation, effectively resist outside
environment intrusion.
5. Intelligentized & humanized, regulating light, comfortable and
convenient.
6. Provide a new aesthetics decoration effect for modern
construction.
7. Integrating multiple functions, energy conservation and cost
reduction.
Performance parameters
| monocrystalline bifacial laminated glass solar panel / BIPV / 230W |
| Model | RXJJ1-DBN(N)230 |
Electrical parameters | maximum power Pm (Wp) * | 230 |
| power tolerance (%) | ± 5 |
| maximum power voltage Vmp (V) * | 24.56 |
| maximum power current Imp (A) * | 9.37 |
| open circuit voltage Voc (V) * | 30.8 |
| short circuit current Isc (A) * | 10.01 |
| maximum system voltage (V) | 1000 |
| Efficiency(%) | 14.5 |
| working temperature (℃) | -40~85℃ |
| temperature coefficient of Pm Tk (Pm) | -0.380%/K |
| temperature coefficient of Voc Tk (Voc) | -0.300%/K |
| temperature coefficient of Isc Tk (Isc) | +0.048%/K |
Mechanical parameters | fault structure (mm) | 5mm tempered glass + 0.76PVB + mono bifacial cells + 0.76PVB + 5mm
tempered glass |
| cable | 4mm²/900mm |
| product dimension | 1500mm*1060mm*28mm |
| product weight | 42kg |
| wind loads resistance | 2.4KN/m² |
| Cells No. | 48(6*8) |

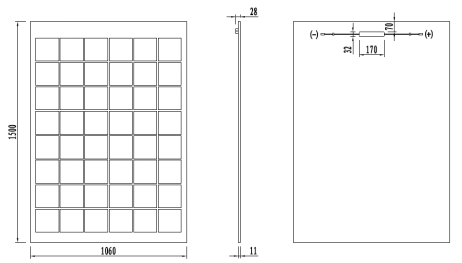

Drawing(mm)
Benefits
Manufactured in an ISO 9001:2000 certified plant
High efficiency , high safety , high reliability
Output power tolerance of +/-5%.
30 Years limited warranty on Power output.
10 Years limited warranty on materials and workmanship.
Safety:
10-year warranty on product materials and processing technology
Power output warranty:10 years:90%,25 years:80%
ISO 9001:2008(Quality Management System) certified factory
IEC61215,IEC61730 ,MCS CEC certified products
TUV,CE conformity
Quality Warranty
30-year power output guarantee
50-year operation lifetime
