Transparent BIPV Solar Panels 440W 445W 450W 455W Double Glass Bifacial Solar Panel

Wuhan Rixin Technology Co., Ltd.
Contact Now
    Buy cheap Transparent BIPV Solar Panels 440W 445W 450W 455W Double Glass Bifacial Solar Panel from wholesalers

    Buy cheap Transparent BIPV Solar Panels 440W 445W 450W 455W Double Glass Bifacial Solar Panel from wholesalers
    • Buy cheap Transparent BIPV Solar Panels 440W 445W 450W 455W Double Glass Bifacial Solar Panel from wholesalers

    Transparent BIPV Solar Panels 440W 445W 450W 455W Double Glass Bifacial Solar Panel

    Ask Lasest Price
    Brand Name : Rixin
    Model Number : RXJJ1-TBA
    Certification : TUV, CE, ISO9001, ISO14001, OHSAS18000
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 3GW/YEAR
    Delivery Time : 15-25 working days
    • Product Details
    • Company Profile

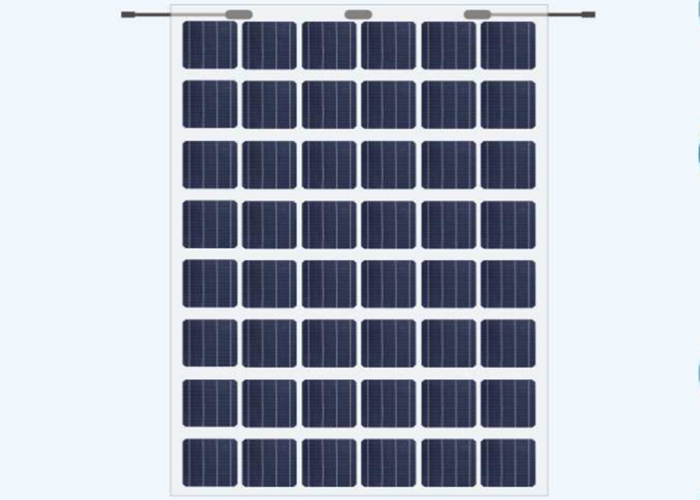

    Transparent BIPV Solar Panels 440W 445W 450W 455W Double Glass Bifacial Solar Panel

    Transparent BIPV Solar panel 440W 445W 450W 455W Double Glass Bifacial Solar Panel Plate for Agricultural Greenhouse


    Construction & Transparency for BIPV:


    Module Type: Glass+PVB+Solar Cell+PVB+Glass

    Transmittance: 5%, 10% , 20%, 25%, 30%,35%,40%,50%


    Performance parameters

    High Transparent 240W Photovaltic Solar Panels Bifacial High Capacity
    ModelDDY445

    Electrical parameters

    maximum power Pm (Wp) *445
    power tolerance (%)± 5
    maximum power voltage Vmp (V) *41.2
    maximum power current Imp (A) *10.8
    open circuit voltage Voc (V) *49.4
    short circuit current Isc (A) *11.52
    maximum system voltage (V)1500
    Efficiency(%)20.2
    working temperature (℃)-40~85℃
    temperature coefficient of Pm Tk (Pm)-0.350%/K
    temperature coefficient of Voc Tk (Voc)-0.284%/K
    temperature coefficient of Isc Tk (Isc)+0.05%/K

    Mechanical parameters

    fault structure (mm)2mm tempered glass + 0.76PVB + mono bifacial cells + 0.76PVB + 2mm tempered glass+ Anodized Alluminum Alloy Frame
    cable4mm²/300mm
    product dimension2094mm*1038*35mm
    product weight27.5kg
    wind loads resistance2.4KN/m²
    Cells No.144(6*24)



    Customized BIPV

    BIPV is a highly customized product , and can be used at any site with any size and shape, so how to select the BIPV you need , please check the information below :

    1. The size of BIPV
    Based on your installation site, so please check
    2. The thickness of BIPV
    The glass thickness 3.2/4/5/6/8/10mm
    3. The Transmittance of BIPV
    Need more sunlight--high transmittance / Less sunlight--low transmittance


    Rixin BIPV solar panels

    1)Performance: High output and efficiency even under low light conditions

    2)Versatility: Salt misr corrosion tested, perfect for harsh climatic conditions

    3)Reliability: stringent quality control testing and strict selection of materials

    4) Innovation: constantly working to provide the next breakthroughin solar technology


    Applications:


    Building fence, building shelter, rooftop, greenhouse, curtin wall and so on.
